TuffTrak

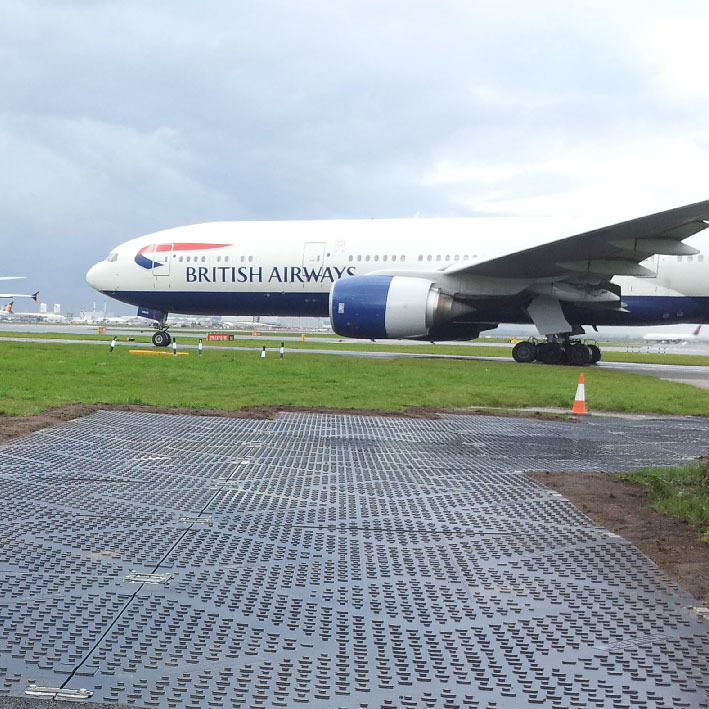

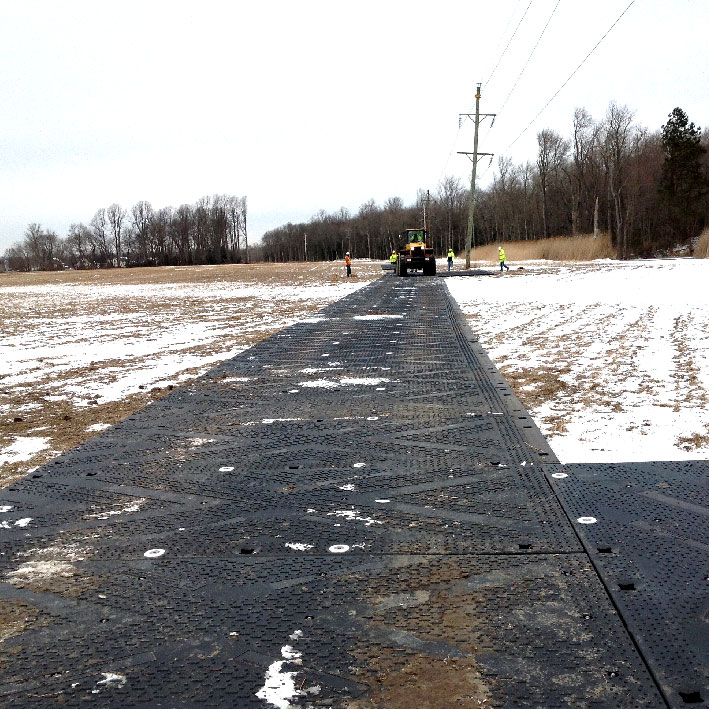

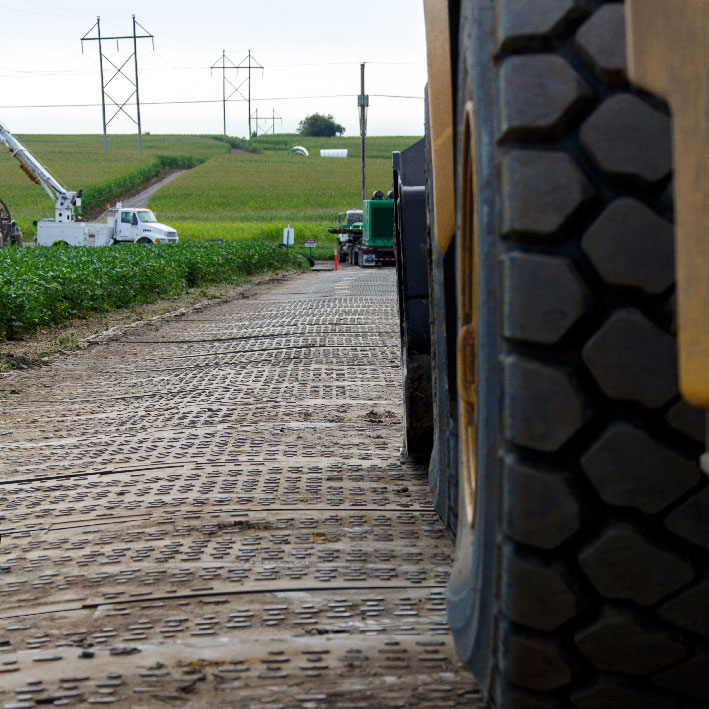

TuffTrak Heavy Duty Ground Protection Mats are the ultimate solution for industrial ground protection and temporary roadways, requiring hiab delivery to site and able to support loads of up to 150T.

TuffTrak mats are manufactured by Tuff-Trak Safety Solutions in Europe. These ultra-heavy-duty mats are ideal for military, mining, oil & gas and infrastructure industries where ultimate performance is needed.

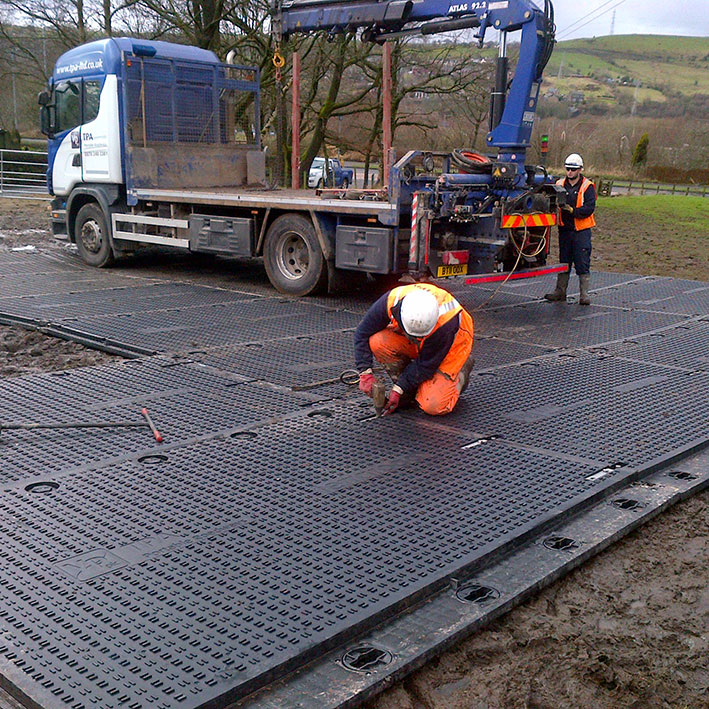

Each mat features an overlapping connection system which allows mats to be firmly locked together, allowing for fast installation and ultimate pad strength.

All Tuff-Trak mats come with a versatile dual tread pattern to provide maximum deployment opportunities – the genuine Chevron traction surface and also a low-profile surface which is more suited to steel tracked equipment.

A range of unique connection systems are also available.

TuffTrak mats come in four different styles to suit your unique needs – please contact ProtectaMat for more details!

Specifications

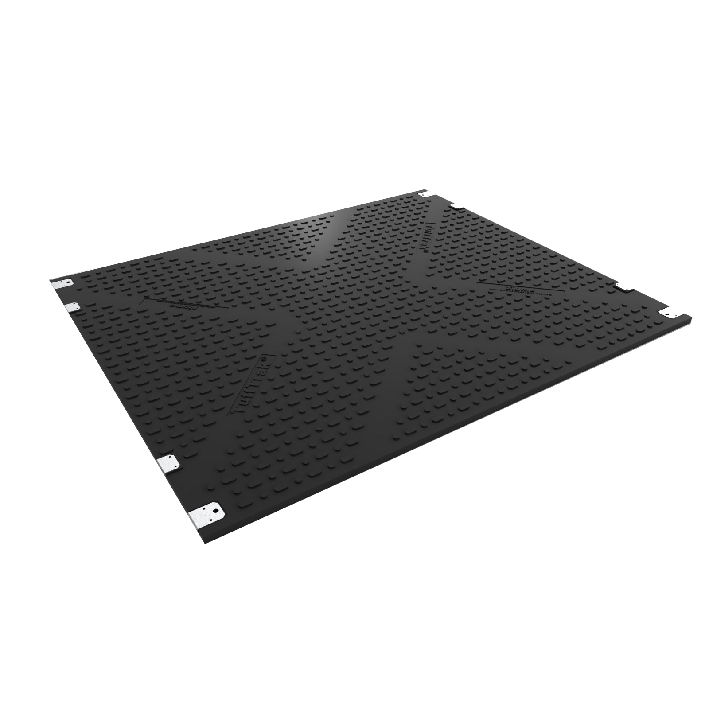

TuffTrak XL

Dimensions – 4090mm x 2035mm x 47mm thickness
Usable Surface Area – 8m2
Weight – 360kg ea
Connector System – ACME bolt system / Metal Connectors / High Tensile Straps
Material – Recycled HMWPE solid plastic

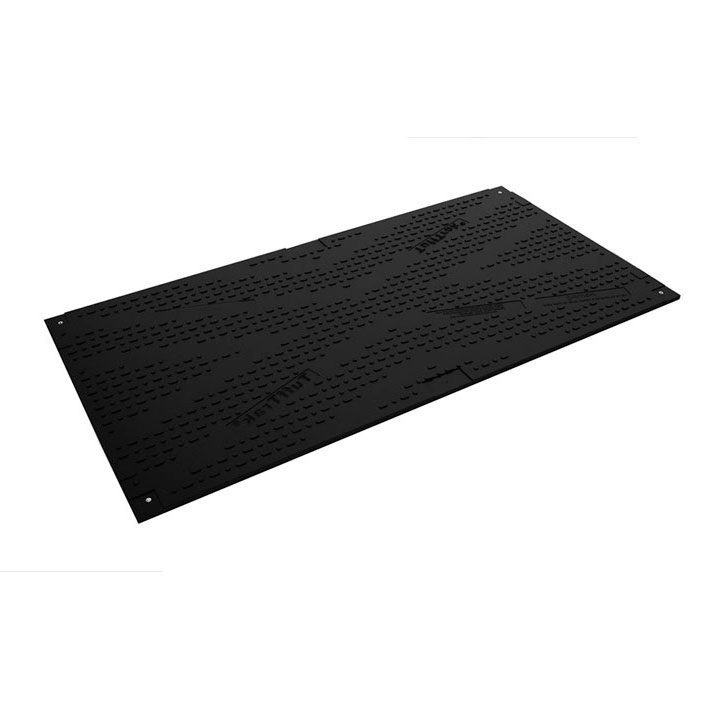

TuffTrak XL+

Dimensions – 4090mm x 2045mm x 47mm thickness
Usable Surface Area – 7.2m2
Weight – 297kg ea
Connector System – 16x Four3 camlock connectors
Material – HMWPE/UHMWPE blended solid plastic

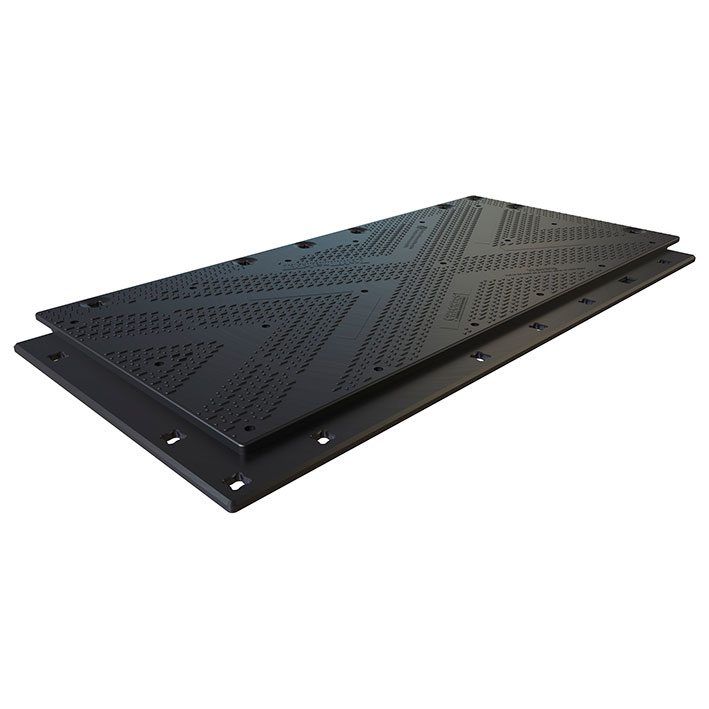

TuffTrak XT

Dimensions – 4000mm x 2000mm x 90mm thickness
Usable Surface Area – 6.84m2
Weight – 360kg ea
Connector System – 16x Four3 camlock connectors
Material – Prime HMWPE plastic with cellular core

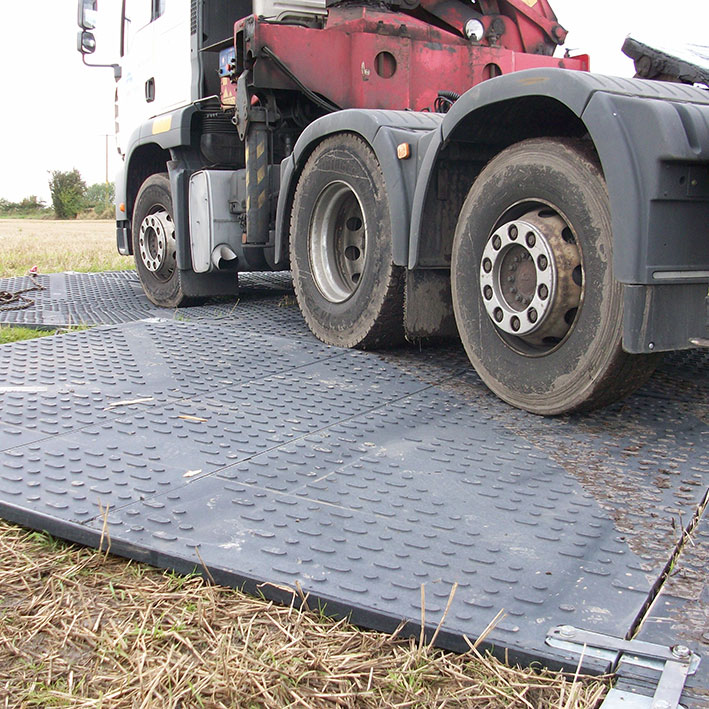

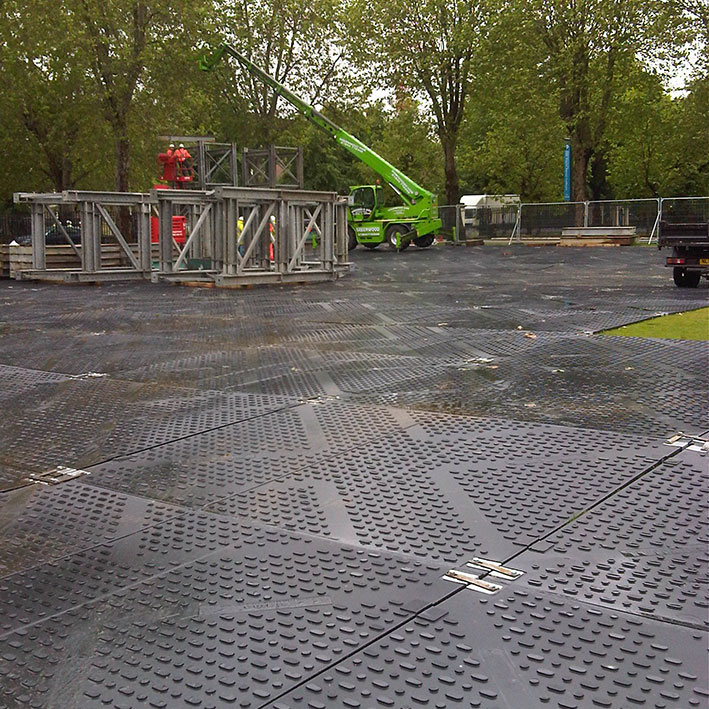

TuffTrak ST

Dimensions – 3000mm x 2500mm x 38mm thickness
Usable Surface Area – 7.5m2
Weight – 295kg ea
Connector SystemACME bolt system / Metal Connectors / High Tensile Straps
Material – 100% recycled HMWPE solid plastic

Download our full Technical Product Info sheet here

Recommended for…

  • Heavy Duty applications
  • Medium-long term use
  • Mining
  • Military
  • Oil & Gas
  • Infrastructure
  • Crane Hire
